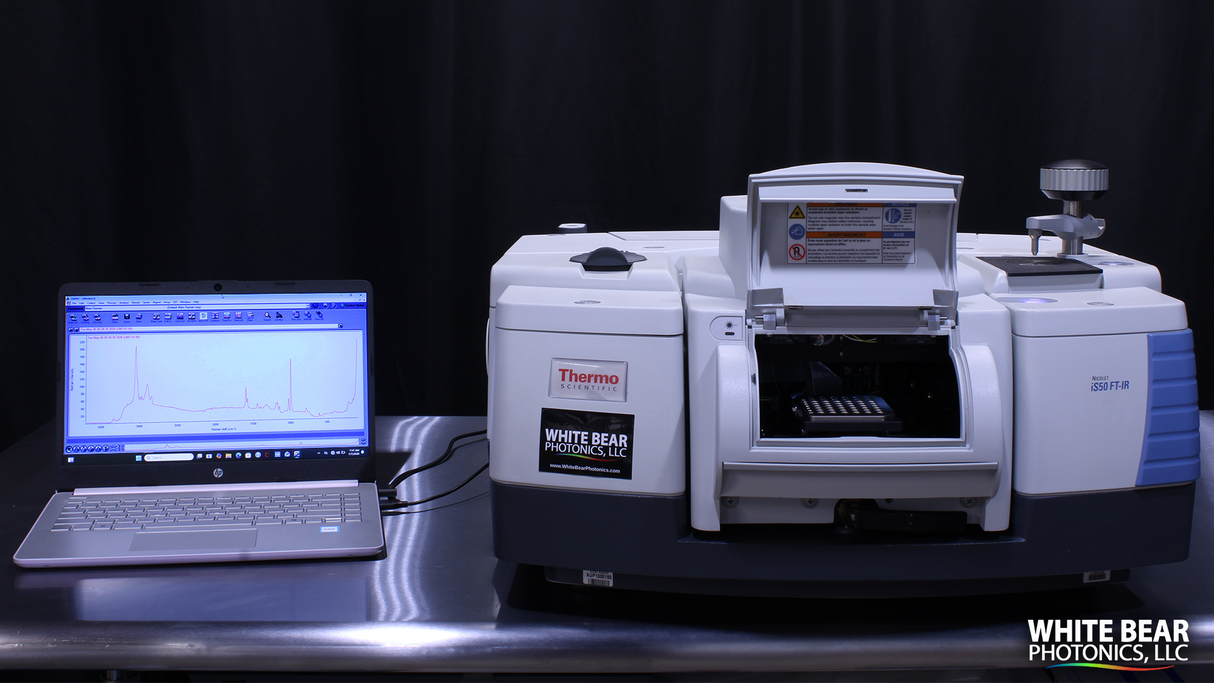

Thermo Nicolet iS50 FTIR - Raman - ATR - Research Grade

The Thermo Scientific Nicolet iS50 FTIR Spectrometer with integrated diamond ATR and iS50 Raman module is a versatile materials analysis workstation combining high-performance FTIR, rugged built-in ATR sampling, and 1064 nm FT-Raman capability in one compact platform. The integrated diamond ATR provides rapid analysis from 5000 to 80 cm⁻¹, while the Raman module offers fluorescence-reduced analysis with a 1064 nm diode laser, >450 mW sample power, <60 micron spot size, and precision x-y-z sample positioning. Ideal for polymers, pharmaceuticals, forensics, pigments, coatings, and general analytical laboratory workflows.

Complete turnkey system with laptop and software.  Refurbished and fully tested to meet original factory specifications for noise, wavelength accuracy, repeatability, and linearity.  Price includes free delivery to the lower 48 states.

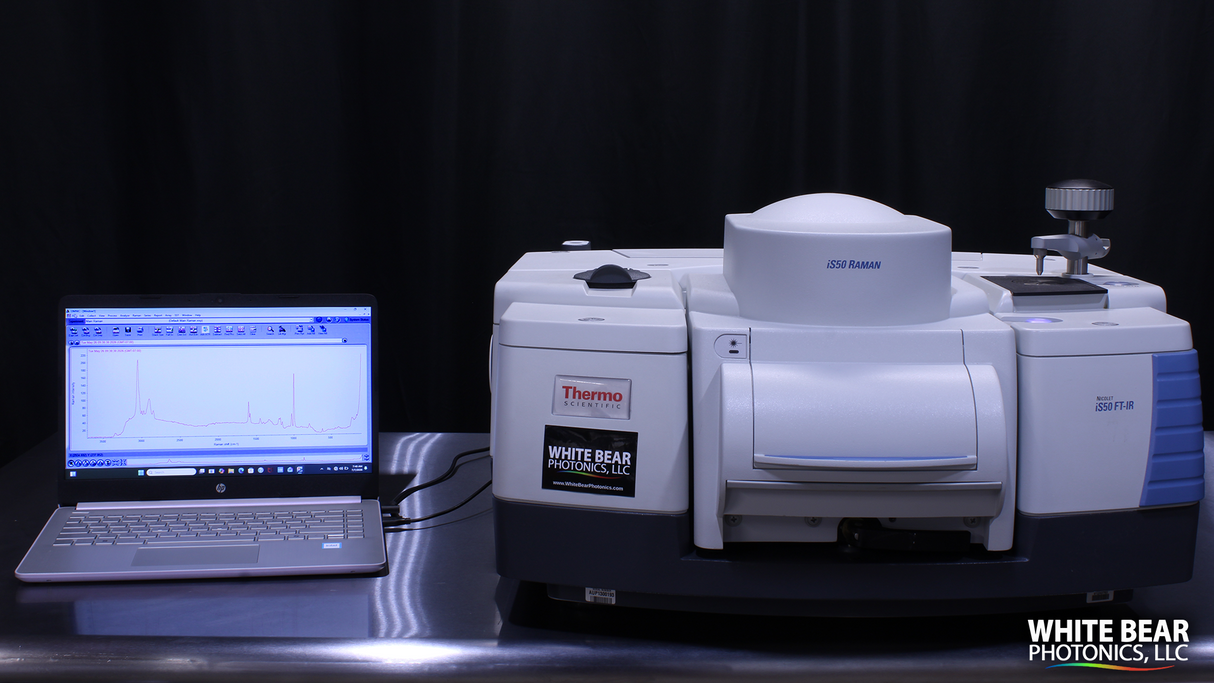

iS50 Raman Accessory

Expand the capabilities of your Thermo Scientific™ Nicolet™ iS50 FTIR Spectrometer with integrated FT-Raman analysis. The iS50 Raman Accessory uses 1064 nm near-infrared excitation, helping reduce fluorescence from challenging samples while providing complementary molecular and structural information to FTIR.

Designed for simple, flexible operation, the module connects directly to the iS50 and automatically configures the instrument through Touch Point operation. Its motorized stage supports single-point analysis, multipoint collection, mapping, and automated high-throughput workflows. A built-in camera allows users to view the sample, select the measurement location, and retain a visual record of where each spectrum was collected.

Key features:

• 1064 nm diode laser with more than 450 mW at the sample
• Laser spot size below 60 µm for analysis of small areas
• Motorized stage with 5 µm positioning steps
• Built-in camera for sample viewing and measurement documentation
• Supports 48-well and 9-well plates, microscope slides, vials, and capillary tubes
• Automated mapping and multipoint data collection

• Typical Raman-shift coverage of approximately 100–3600 cm⁻¹
• Approximate spectral resolution of 1 cm⁻¹

iS50 Integrated ATR

The integrated ATR module transforms the Thermo Scientific™ Nicolet™ iS50 FTIR Spectrometer into a convenient, all-in-one materials analysis workstation. Its durable diamond crystal supports rapid measurement of solids, powders, pastes, gels, and liquids with little or no sample preparation. The built-in design adds no instrument footprint and leaves the main sample compartment available for other sampling accessories.

With the press of the dedicated Touch Point button, users can access the ATR workflow without manually changing system components. The integrated pressure tower promotes consistent sample-to-crystal contact, while the dedicated detector and wide spectral-range design support high-quality measurements from the mid-infrared into the far-infrared.

Key benefits include:

• Fast, straightforward analysis with minimal sample preparation
• Rugged diamond sampling surface for a wide variety of materials
• Repeatable measurements using controlled sample pressure
• One-touch access to the ATR experiment
• No need to remove or reinstall accessories between ATR and main-compartment measurements
• No additional bench-space requirement
• Expanded mid- and far-IR analytical capability
